SKYWORKS晶振
- 產品型號：50838972
- 晶振頻率：160MHz
- 晶振尺寸：5.0*3.2*1.2mm
- 產品應用： Skyworks晶振,歐美進口晶振,Si511石英晶體振蕩器,六腳貼片晶振,5032差分晶振,LVDS輸出晶振,511BCA160M000BAGR晶振,有源晶振,6G通信設備晶振,網絡系統晶振,測試與測量設備晶振,服務器和存儲系統晶振.
-

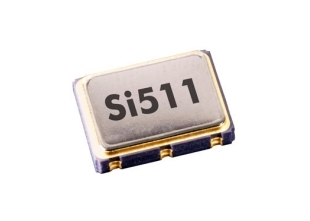

Skyworks晶振,511BCA160M000BAGR,6G通信設備晶振
Skyworks晶振,511BCA160M000BAGR,6G通信設備晶振,Skyworks晶振,Si511石英晶體振蕩器,5032差分晶振,LVDS輸出晶振,511BCA160M000BAGR晶振,Si511晶振提供卓越的電源噪聲抑制,簡化低抖動時鐘在嘈雜的環境中產生,晶體ESR和DLD是獨立的生產測試,以保證性能和提高可靠性.Si511可在工廠配置,適用于各種用戶規格:包括頻率,電源電壓,輸出格式,輸出使能極性和穩定性.特定的配置是在出廠時編程的運輸,消除了漫長的交貨期和非經常性的工程費用與自定義頻率振蕩器相關聯,6G通信設備晶振,網絡系統晶振,測試與測量設備晶振,服務器和存儲系統晶振.
Skyworks晶振,511BCA160M000BAGR,6G通信設備晶振規格表
| 項目 | 符號 | 規格說明 | 條件 |
| 額定頻率 | f_nom | 160MHz | 請聯系我們以便獲取其它可用頻率的相關信息 |
| 電源電壓 | Vcc | 3.3V | |
| 儲存溫度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作溫度 | T_use | -40℃~ +85℃ | |
| 頻率穩定性 | f_tol | ±25 ppm | +25℃,超出標準的規格說明請聯系我們 |
| 電源電流 | IDD | 23mA Max |
LVDS
|
| 對稱性（占空比） | SYM | 48%~52% | 在輸出交叉點 |
| 輸出電壓 | VOC | 1.33V Max |
LVDS
|
| VO | 0.45Vpp Max | ||
| 輸入電壓 | VIH | 80%VDD Min |
|
| VIL | 20%VDD Max | ||
| 上升下降時間 | tr/tf | 800ps Max |
LVDS
|
| 起始時間 | t str | 10ms Max | |
| 相位抖動 | tpj | 0.55ps Max |
Differential Formats
|
.jpg)
Skyworks晶振,511BCA160M000BAGR,6G通信設備晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 |
| 511BBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511FBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511FBA000330BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511BBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511BBA125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511BBA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511BBA200M000AAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511ABA156M250AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BBA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511BCA160M000BAGR | Skyworks Solutions Inc. | Si511 | 160 MHz | LVDS | 3.3V |
| 511BBA74M2500BAG | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 3.3V |
| 511FBA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511BBA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511FBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511BBA000110BAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 3.3V |
| 511FBA156M250BAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511BBA148M500BAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 3.3V |
| 511JBA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511FBA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511JBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 1.8V |
| 511FCA25M0000BAG | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 2.5V |
| 511FCA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511JBA135M000BAG | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 1.8V |
| 511JBA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 1.8V |
| 511BBA106M250AAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511BBA106M250BAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511ABA156M250BAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BBA148M500AAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 3.3V |
| 511BBA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511FBA125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511FBA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511FBA200M000AAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511FCA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511JBA125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511ACA156M250CAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BCA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511ABA25M0000AAG | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511FBA74M2500BAG | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511FBA000110AAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 2.5V |
| 511ABA155M520AAG | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVPECL | 3.3V |
| 511BBA212M500AAG | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 3.3V |
| 511ABA200M000AAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511ABA25M0000BAG | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511ABA148M500BAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVPECL | 3.3V |
| 511ABA148M500AAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVPECL | 3.3V |
| 511ABA000336AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511ABA000110BAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVPECL | 3.3V |
| 511FBA106M250AAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511BBA000149AAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511FCA80M0000CAG | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 2.5V |
| 511BBA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511DBA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511ABA000336AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BCA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511BBA200M000AAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 3.3V |
| 511BBA135M000BAG | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 3.3V |
| 511BBA105M600AAG | Skyworks Solutions Inc. | Si511 | 105.6 MHz | LVDS | 3.3V |
| 511DCA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511BBA133M000AAG | Skyworks Solutions Inc. | Si511 | 133 MHz | LVDS | 3.3V |
| 511JCA233M250BAG | Skyworks Solutions Inc. | Si511 | 233.25 MHz | LVDS | 1.8V |
| 511FBA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511BBA155M520BAG | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511BBA000110AAG | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 3.3V |
| 511FBA212M500BAG | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 2.5V |
| 511FBA212M500AAG | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 2.5V |
| 511ABA74M2500AAG | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVPECL | 3.3V |
| 511ABA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511BBA156M250BAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511BBA156M250BAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511JCA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 1.8V |
| 511ABA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511ABA125M000BAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 3.3V |
| 511FBA106M250BAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511FBA148M500BAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 2.5V |
| 511BBA106M250AAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511FCA000292CAG | Skyworks Solutions Inc. | Si511 | 161.1328 MHz | LVDS | 2.5V |
| 511JCA200M000BAG | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 1.8V |
| 511ABA156M250AAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511BBA000149BAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511BBA155M520AAG | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511ABA100M000AAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511FCA156M250CAG | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511FBA148M500AAG | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 2.5V |
| 511DBA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511FBA135M000BAG | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 2.5V |
| 511DBB100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511ACA11M0592BAGR | Skyworks Solutions Inc. | Si511 | 11.0592 MHz | LVPECL | 3.3V |
| 511ACA24M0000BAGR | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511ACA24M5760BAGR | Skyworks Solutions Inc. | Si511 | 24.576 MHz | LVPECL | 3.3V |
| 511ECA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 2.5V |
| 511FAA153M600BAGR | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511ABA24M0000AAGR | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511EBB125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 2.5V |
| 511FBA000108BAGR | Skyworks Solutions Inc. | Si511 | 108 kHz | LVDS | 2.5V |
| 511ACA68M8128AAGR | Skyworks Solutions Inc. | Si511 | 68.8128 MHz | LVPECL | 3.3V |
| 511BCB125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511ABA000185AAGR | Skyworks Solutions Inc. | Si511 | 185 kHz | LVPECL | 3.3V |
| 511FBA153M600AAGR | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511JBA150M000AAGR | Skyworks Solutions Inc. | Si511 | 150 MHz | LVDS | 1.8V |
| 511DBB100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511BBA156M250AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 3.3V |
| 511FBA156M250AAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511ABA155M520AAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVPECL | 3.3V |
| 511BBA155M520AAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511FBA155M520AAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 2.5V |
| 511ACA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511ACA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | LVPECL | 3.3V |
| 511DCA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | HCSL | 3.3V |
| 511DCA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | HCSL | 3.3V |
| 511ECA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 2.5V |
| 511ECA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | LVPECL | 2.5V |
| 511HCA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | HCSL | 2.5V |
| 511HCA250M000BAGR | Skyworks Solutions Inc. | Si511 | 250 MHz | HCSL | 2.5V |
| 511JCA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 1.8V |
| 511ABA156M250BAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVPECL | 3.3V |
| 511FBA156M250BAGR | Skyworks Solutions Inc. | Si511 | 156.25 MHz | LVDS | 2.5V |
| 511ABA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVPECL | 3.3V |
| 511BBA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511FBA148M500BAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 2.5V |
| 511FBA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 2.5V |
| 511ABA000110BAGR | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVPECL | 3.3V |
| 511BBA000110BAGR | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 3.3V |
| 511BBA148M500BAGR | Skyworks Solutions Inc. | Si511 | 148.5 MHz | LVDS | 3.3V |
| 511FBA000110BAGR | Skyworks Solutions Inc. | Si511 | 148.35165 MHz | LVDS | 2.5V |
| 511ABA100M000AAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511ABA125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 3.3V |
| 511BBA100M000AAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511BBA125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511FBA100M000AAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511FBA125M000AAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 2.5V |
| 511ABA106M250AAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVPECL | 3.3V |
| 511FBA106M250AAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511ABA000149AAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVPECL | 3.3V |
| 511ABA74M2500AAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVPECL | 3.3V |
| 511BBA000149AAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511BBA74M2500AAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 3.3V |
| 511FBA000149AAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 2.5V |
| 511FBA74M2500AAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511BCA004638BAGR | Skyworks Solutions Inc. | Si511 | 638 kHz | LVDS | 3.3V |
| 511BCA155M520BAGR | Skyworks Solutions Inc. | Si511 | 155.52 MHz | LVDS | 3.3V |
| 511BCA135M000AAGR | Skyworks Solutions Inc. | Si511 | 135 MHz | LVDS | 3.3V |
| 511ABA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 3.3V |
| 511ABA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 3.3V |
| 511BBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511FBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511ABA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVPECL | 3.3V |
| 511BBA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 3.3V |
| 511FBA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 2.5V |
| 511ABA000149BAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVPECL | 3.3V |
| 511ABA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVPECL | 3.3V |
| 511BBA000149BAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 3.3V |
| 511BBA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 3.3V |
| 511FBA000149BAGR | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 2.5V |
| 511FBA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511BAA75M0000BAGR | Skyworks Solutions Inc. | Si511 | 75 MHz | LVDS | 3.3V |
| 511DAA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | HCSL | 3.3V |
| 511AAA10M0000CAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | LVPECL | 3.3V |
| 511JAB125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511DAB10M0000CAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | HCSL | 3.3V |
| 511FAA74M2500CAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 2.5V |
| 511ABA200M000AAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511FBA200M000AAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511ABA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVPECL | 3.3V |
| 511FBA200M000BAGR | Skyworks Solutions Inc. | Si511 | 200 MHz | LVDS | 2.5V |
| 511ABA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVPECL | 3.3V |
| 511BBA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 3.3V |
| 511FBA212M500BAGR | Skyworks Solutions Inc. | Si511 | 212.5 MHz | LVDS | 2.5V |
| 511ABA000149BAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVPECL | 3.3V |
| 511FBA000149BAG | Skyworks Solutions Inc. | Si511 | 74.175824 MHz | LVDS | 2.5V |
| 511ABA000185AAG | Skyworks Solutions Inc. | Si511 | 185 kHz | LVPECL | 3.3V |
| 511FBA153M600AAG | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511JBA150M000AAG | Skyworks Solutions Inc. | Si511 | 150 MHz | LVDS | 1.8V |
| 511ABA24M0000AAG | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511EBB125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 2.5V |
| 511FBA000331BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511BBA10M0000BAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | LVDS | 3.3V |
| 511BBA5M00000BAGR | Skyworks Solutions Inc. | Si511 | 5 MHz | LVDS | 3.3V |
| 511BBA62M5000BAGR | Skyworks Solutions Inc. | Si511 | 62.5 MHz | LVDS | 3.3V |
| 511DBA27M0000BAGR | Skyworks Solutions Inc. | Si511 | 27 MHz | HCSL | 3.3V |
| 511FBA96M0000BAGR | Skyworks Solutions Inc. | Si511 | 96 MHz | LVDS | 2.5V |
| 511JBA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 1.8V |
| 511JBA67M5000BAGR | Skyworks Solutions Inc. | Si511 | 67.5 MHz | LVDS | 1.8V |
| 511JBA74M2500BAGR | Skyworks Solutions Inc. | Si511 | 74.25 MHz | LVDS | 1.8V |
| 511JBA52M0000CAGR | Skyworks Solutions Inc. | Si511 | 52 MHz | LVDS | 1.8V |
| 511BBA104M000BAGR | Skyworks Solutions Inc. | Si511 | 104 MHz | LVDS | 3.3V |
| 511ABA50M0000CAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVPECL | 3.3V |
| 511JBA116M625BAGR | Skyworks Solutions Inc. | Si511 | 116.625 MHz | LVDS | 1.8V |
| 511JBA50M0000BAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 1.8V |
| 511FBA111M111CAGR | Skyworks Solutions Inc. | Si511 | 111.111 MHz | LVDS | 2.5V |
| 511JBA125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511JBA116M625CAGR | Skyworks Solutions Inc. | Si511 | 116.625 MHz | LVDS | 1.8V |
| 511FBA83M3333CAGR | Skyworks Solutions Inc. | Si511 | 83.3333 MHz | LVDS | 2.5V |
| 511JBA000346CAGR | Skyworks Solutions Inc. | Si511 | 33.333333 MHz | LVDS | 1.8V |
| 511BBA100M000CAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 3.3V |
| 511LBA38M4000CAGR | Skyworks Solutions Inc. | Si511 | 38.4 MHz | HCSL | 1.8V |
| 511JBA25M0000CAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 1.8V |
| 511BBA125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511ABA52M5000CAGR | Skyworks Solutions Inc. | Si511 | 52.5 MHz | LVPECL | 3.3V |
| 511FBA20M0000CAGR | Skyworks Solutions Inc. | Si511 | 20 MHz | LVDS | 2.5V |
| 511JBA10M0000BAGR | Skyworks Solutions Inc. | Si511 | 10 MHz | LVDS | 1.8V |
| 511JBA72M0000CAGR | Skyworks Solutions Inc. | Si511 | 72 MHz | LVDS | 1.8V |
| 511FBA100M000CAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 2.5V |
| 511DBA100M000CAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511JBB125M000CAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511DBA38M4000CAGR | Skyworks Solutions Inc. | Si511 | 38.4 MHz | HCSL | 3.3V |
| 511BBA50M0000CAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 3.3V |
| 511JBB120M000CAGR | Skyworks Solutions Inc. | Si511 | 120 MHz | LVDS | 1.8V |
| 511DBA27M0000CAGR | Skyworks Solutions Inc. | Si511 | 27 MHz | HCSL | 3.3V |
| 511DBA25M0000CAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | HCSL | 3.3V |
| 511JBA80M0000CAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 1.8V |
| 511BBA72M0000BAGR | Skyworks Solutions Inc. | Si511 | 72 MHz | LVDS | 3.3V |
| 511LBA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | HCSL | 1.8V |
| 511JBA66M6670BAGR | Skyworks Solutions Inc. | Si511 | 66.667 MHz | LVDS | 1.8V |
| 511JBA26M0000CAGR | Skyworks Solutions Inc. | Si511 | 26 MHz | LVDS | 1.8V |
| 511BBA5M00000CAGR | Skyworks Solutions Inc. | Si511 | 5 MHz | LVDS | 3.3V |
| 511BBA80M0000CAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 3.3V |
| 511BBA80M0000BAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 3.3V |
| 511BBA70M6560BAGR | Skyworks Solutions Inc. | Si511 | 70.656 MHz | LVDS | 3.3V |
| 511ABA25M0000CAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511BCB125M000AAG | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 3.3V |
| 511ACA68M8128AAG | Skyworks Solutions Inc. | Si511 | 68.8128 MHz | LVPECL | 3.3V |
| 511ABA106M250BAG | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVPECL | 3.3V |
| 511ACA11M0592BAG | Skyworks Solutions Inc. | Si511 | 11.0592 MHz | LVPECL | 3.3V |
| 511ACA24M0000BAG | Skyworks Solutions Inc. | Si511 | 24 MHz | LVPECL | 3.3V |
| 511ACA24M5760BAG | Skyworks Solutions Inc. | Si511 | 24.576 MHz | LVPECL | 3.3V |
| 511ECA100M000BAG | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 2.5V |
| 511FAA153M600BAG | Skyworks Solutions Inc. | Si511 | 153.6 MHz | LVDS | 2.5V |
| 511ABA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVPECL | 3.3V |
| 511ABB107M500BAGR | Skyworks Solutions Inc. | Si511 | 107.5 MHz | LVPECL | 3.3V |
| 511BBA000306BAGR | Skyworks Solutions Inc. | Si511 | 25.00125 MHz | LVDS | 3.3V |
| 511BBA122M880BAGR | Skyworks Solutions Inc. | Si511 | 122.88 MHz | LVDS | 3.3V |
| 511BBA25M0000BAGR | Skyworks Solutions Inc. | Si511 | 25 MHz | LVDS | 3.3V |
| 511BBA27M0000BAGR | Skyworks Solutions Inc. | Si511 | 27 MHz | LVDS | 3.3V |
| 511BBA30M7200BAGR | Skyworks Solutions Inc. | Si511 | 30.72 MHz | LVDS | 3.3V |
| 511BBA50M0000BAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 3.3V |
| 511BBA53M6256BAGR | Skyworks Solutions Inc. | Si511 | 53.6256 MHz | LVDS | 3.3V |
| 511BBA96M0000BAGR | Skyworks Solutions Inc. | Si511 | 96 MHz | LVDS | 3.3V |
| 511BBA99M9960BAGR | Skyworks Solutions Inc. | Si511 | 99.996 MHz | LVDS | 3.3V |
| 511BBA99M9980BAGR | Skyworks Solutions Inc. | Si511 | 99.998 MHz | LVDS | 3.3V |
| 511BBB80M0000BAGR | Skyworks Solutions Inc. | Si511 | 80 MHz | LVDS | 3.3V |
| 511DBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 3.3V |
| 511DBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | HCSL | 3.3V |
| 511EBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVPECL | 2.5V |
| 511EBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVPECL | 2.5V |
| 511FBA108M000BAGR | Skyworks Solutions Inc. | Si511 | 108 MHz | LVDS | 2.5V |
| 511FBA30M7200BAGR | Skyworks Solutions Inc. | Si511 | 30.72 MHz | LVDS | 2.5V |
| 511FBA40M0000BAGR | Skyworks Solutions Inc. | Si511 | 40 MHz | LVDS | 2.5V |
| 511FBA50M0000BAGR | Skyworks Solutions Inc. | Si511 | 50 MHz | LVDS | 2.5V |
| 511FBA81M0000BAGR | Skyworks Solutions Inc. | Si511 | 81 MHz | LVDS | 2.5V |
| 511HBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | HCSL | 2.5V |
| 511JBA100M000BAGR | Skyworks Solutions Inc. | Si511 | 100 MHz | LVDS | 1.8V |
| 511JBA106M250BAGR | Skyworks Solutions Inc. | Si511 | 106.25 MHz | LVDS | 1.8V |
| 511JBA125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
| 511JBA20M0000BAGR | Skyworks Solutions Inc. | Si511 | 20 MHz | LVDS | 1.8V |
| 511JBA75M0000BAGR | Skyworks Solutions Inc. | Si511 | 75 MHz | LVDS | 1.8V |
| 511JBB125M000BAGR | Skyworks Solutions Inc. | Si511 | 125 MHz | LVDS | 1.8V |
1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受 專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 何疑問.讓您的消費得到保障。
3.質量保證，誠信為上 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 為您的產品量身訂制,免費取樣,
為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請提前和業務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.
深 圳 市 泰 河 電 子 有 限 公 司
代理:EPSON,KDS,CITIZEN,SEIKO
電話:0755-27872782
手機:13824306246
郵箱:taiheth@163.com
Q Q:794113422
地址:深圳市寶安區40區33號工業城6樓
網址：http://www.seastar-sys.com
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
微信:taihekj QQ:794113422
