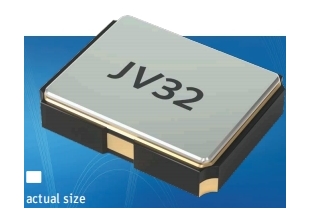

首頁歐美晶振 JAUCH晶振O 20.0-JV32-B-3.3-1.65-10-T1-LF|Oscillator Crystal

O 20.0-JV32-B-3.3-1.65-10-T1-LF|Oscillator Crystal

產品型號：10519458
晶振頻率：20MHz
晶振尺寸：3.2*2.5*1.0mm
產品應用： Jauch晶振,進口晶振,JV32有源晶振,石英晶體振蕩器,O 20.0-JV32-B-3.3-1.65-10-T1-LF晶振,Oscillator Crystal,3225貼片晶振,VCXO壓控晶振,頻率20MHz,電壓3.3V,頻率穩定性50ppm,工作溫度-40~85°C,小體積晶振,高品質晶振...

O 20.0-JV32-B-3.3-1.65-10-T1-LF|Oscillator Crystal,Jauch晶振,進口晶振,JV32有源晶振,石英晶體振蕩器,O 20.0-JV32-B-3.3-1.65-10-T1-LF晶振,Oscillator Crystal,3225貼片晶振,VCXO壓控晶振,頻率20MHz,電壓3.3V,頻率穩定性50ppm,工作溫度-40~85°C,小體積晶振,高品質晶振,低功耗晶振,測試與測量設備晶振,無線局域網晶振,專業視頻設備晶振,消費電子產品晶振.

O 20.0-JV32-B-3.3-1.65-10-T1-LF|Oscillator Crystal特點：
-SMD壓控晶體振蕩器，3.2 x 2.5 mm
-拉力范圍±100ppm最小
-HCMOS / LVCMOS輸出
-陶瓷/金屬封裝

O 20.0-JV32-B-3.3-1.65-10-T1-LF|Oscillator Crystal規格表

TYPE		JV32
frequency range		20MHz
frequency stability over all*		± 50 ppm (incl. 2x reflow)
current consumption		5.0 mA (1.25 ~ 29.9 MHz)
supply voltage VDC		3.3V (±10%)
frequency pulling range min		±100 ppm
pulling	control voltage	1.65 V ± 1.65 V**
	linearity	< 10 %
	input impedance	1 MΩ min.
	modulation BW	20 kHz min.
temperature	operating	-40°C ~ +85 °C
temperature	storage	-55 °C ~ +125 °C
output	rise & fall time	6.0 ns max
	load max	15 pF
	current max	2.8mA
	low level max	0.4 V
	high level min.	VDC - 0.4 V
standby function		no
start-up time max		10 ms
Phase noise @ 1 kHz		-130 dBc/Hz typ. (at 27.0 MHz output)
symmetry at 0.5 x VDC.		45 % ~ 55 % max.

O 20.0-JV32-B-3.3-1.65-10-T1-LF|Oscillator Crystal尺寸圖
