針對各種車載電子設備對石英晶振在高溫、抗振動等方面的更高要求，愛普生可以提供全面的符合AEC-Q200/100技術標準的汽車用車規晶振。

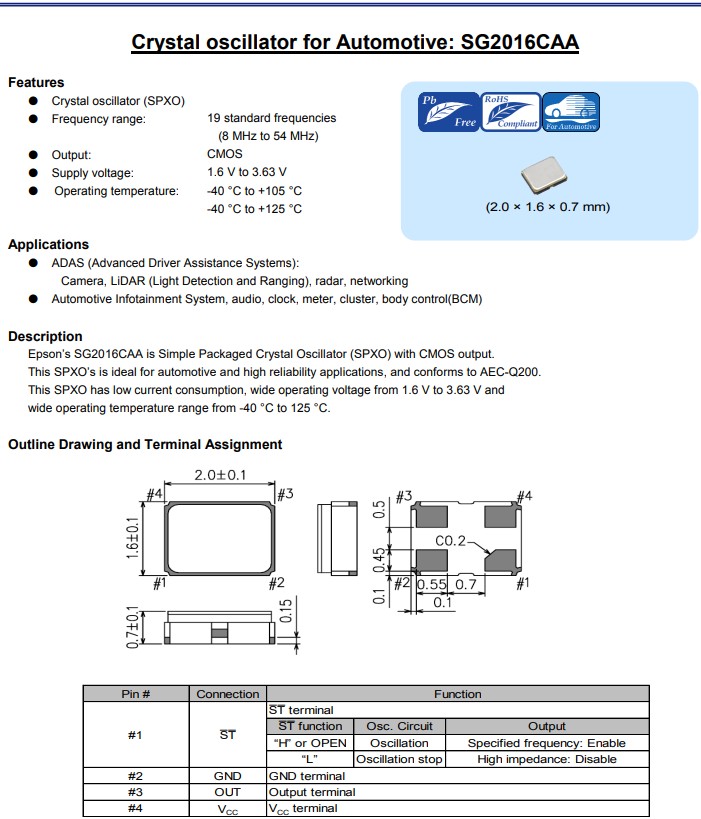

愛普生晶振推出汽車電子專用晶振SG2016CAA，是一款具有CMOS輸出的簡單封裝石英晶體振蕩器(SPXO)，小體積晶振尺寸2.0x1.6mm有源晶振，四腳貼片晶振，電源電壓:1.6V至3.63V，頻率范圍:8MHz至54MHz，寬工作溫度范圍從-40℃到+105℃（+125℃），具有超小型，輕薄型，低電源電壓，低抖動，耐高溫，耐熱、耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。這款SG2016CAA有源晶振非常適合汽車和高可靠性應用，汽車電子，汽車遙控器，汽車多媒體，GPS導航等應用。
汽車遙控器應用晶振SG2016CAA車載晶振X1G005341001100,X1G005341006200,有源晶振

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G005341000200	SG2016CAA	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341000400	SG2016CAA	40.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341000900	SG2016CAA	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341001100	SG2016CAA	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341001300	SG2016CAA	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341001500	SG2016CAA	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341001700	SG2016CAA	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341001900	SG2016CAA	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341002400	SG2016CAA	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341002700	SG2016CAA	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341002900	SG2016CAA	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341003400	SG2016CAA	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341003500	SG2016CAA	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341003700	SG2016CAA	54.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341003800	SG2016CAA	54.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341004100	SG2016CAA	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C

X1G005341004400	SG2016CAA	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341004500	SG2016CAA	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341004600	SG2016CAA	33.333300MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005000	SG2016CAA	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341005100	SG2016CAA	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005300	SG2016CAA	33.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005400	SG2016CAA	16.666600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005600	SG2016CAA	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341005700	SG2016CAA	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341005800	SG2016CAA	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C
X1G005341005900	SG2016CAA	16.666600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341006000	SG2016CAA	22.579200MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341006100	SG2016CAA	11.289600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G005341006200	SG2016CAA	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 125°C

汽車遙控器應用晶振SG2016CAA車載晶振X1G005341001100,X1G005341006200,有源晶振
近幾年互聯網高速發展，隨著5G時代的到來，智能汽車的發展也越發的迅速。汽車電子對晶振的要求比消費類的科技數碼產品高的多，特別是耐高溫這一塊，汽車電子中的晶振最好能在高溫和低溫狀態下正常工作。
