5G將成倍增加網絡通信流量。5G通信網絡需要高速和寬帶寬，同時保持噪聲水平最小。這可以用高頻來實現，用于通信設備的低抖動參考時鐘。用于80公里以上400 Gbps / 800 Gbps傳輸?shù)墓馔ㄐ拍K需要小尺寸、20×10-6穩定性參考時鐘。

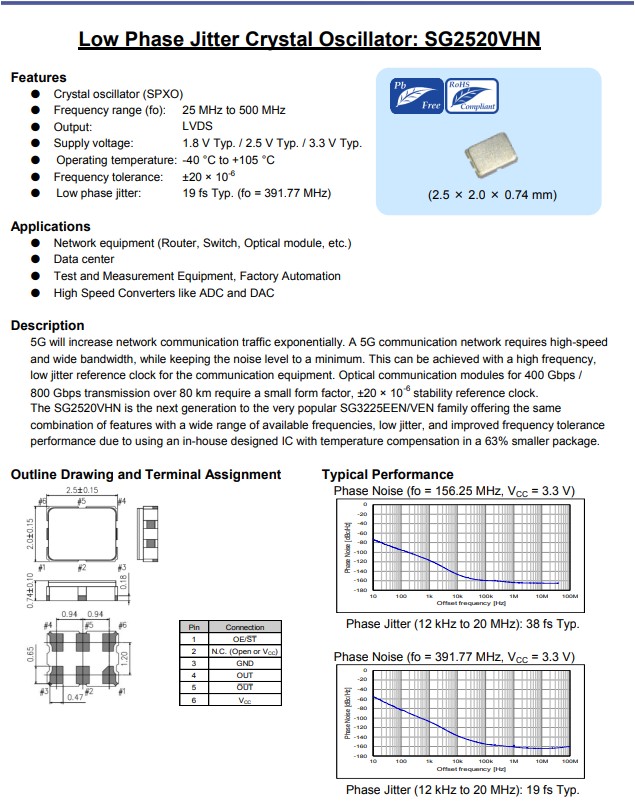

愛普生晶振SG2520VHN是非常受歡迎的SG3225EEN/VEN系列的下一代產品，提供相同的功能組合，具有廣泛的可用頻率、低抖動和更高的頻率容差性能，因為它采用了內部設計的溫度補償IC，小體積晶振規格2.5x2.0mm封裝尺寸減小了63%。支持LVDS輸出差分晶振，電源電壓1.8V至3.3V，頻率范圍25MHz至500MHz任意一頻點具有低電源電壓，滿足產品低消耗電流特點。被廣泛用于通訊設備,機頂盒，光端機，安防設備及各種頻率控制設備上.
SG2520VHN差分晶振X1G005941001015適用于5G通信網絡設備,X1G005941000415,有源晶振

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G005941000115	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005941000215	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005941000315	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 105°C
X1G005941000415	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 85°C
X1G005941000515	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 105°C
X1G005941000615	SG2520VHN	155.520000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005941000715	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 85°C
X1G005941000815	SG2520VHN	174.703000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 85°C
X1G005941000915	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	2.375 to 2.625V	-40 to 105°C
X1G005941001015	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	3.135 to 3.465V	-40 to 85°C
X1G005941001115	SG2520VHN	156.250000MHz	2.50x2.00x0.84mm	LVDS	1.710 to 1.890V	-40 to 85°C
